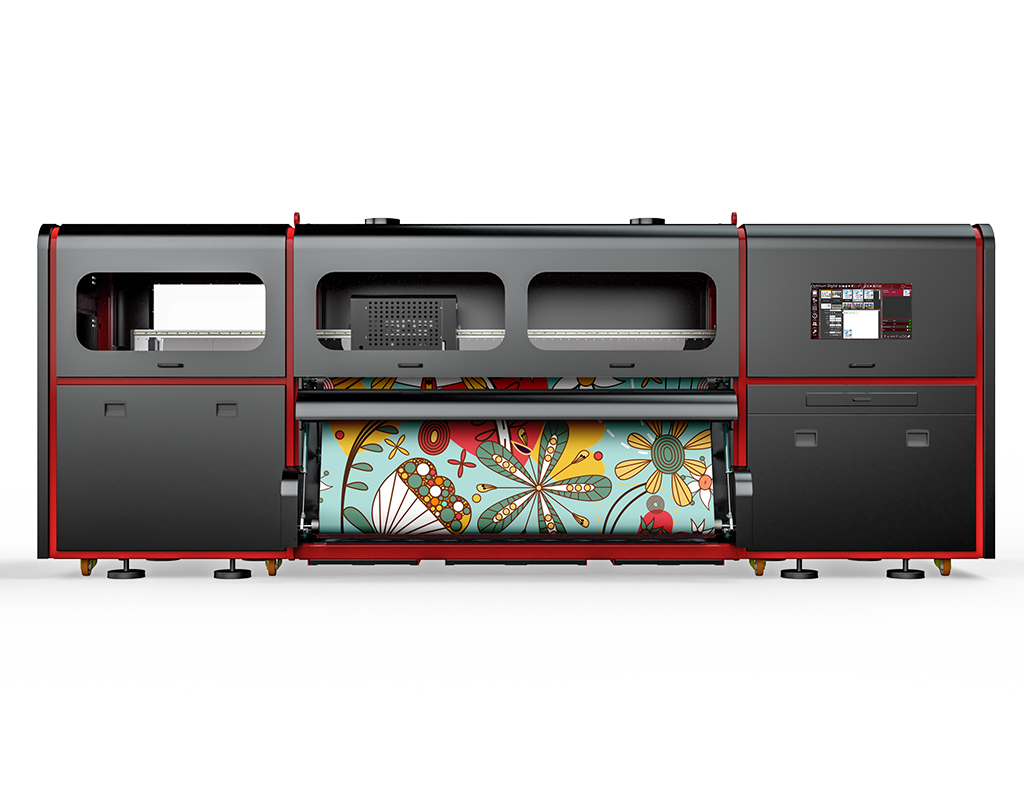

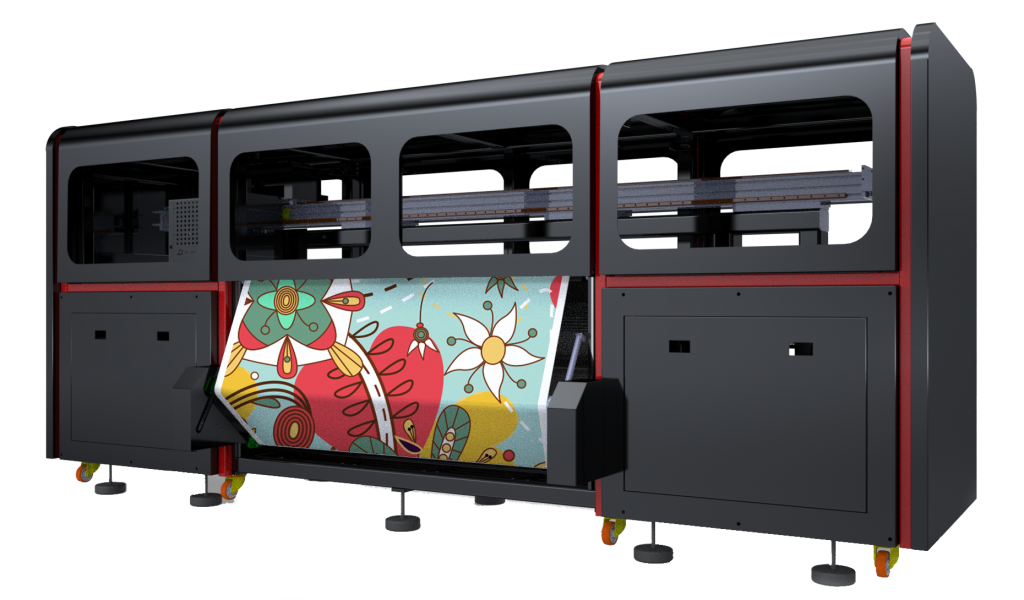

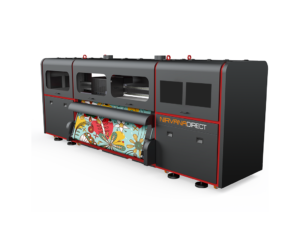

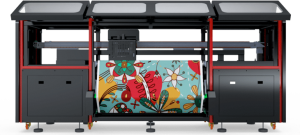

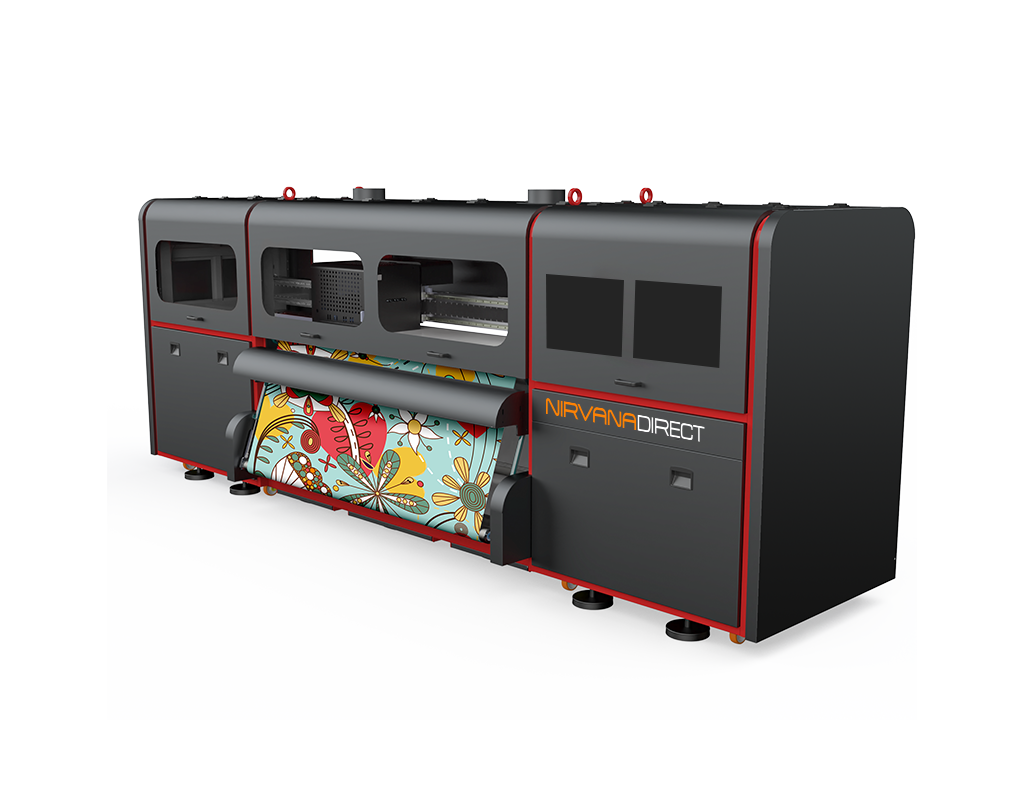

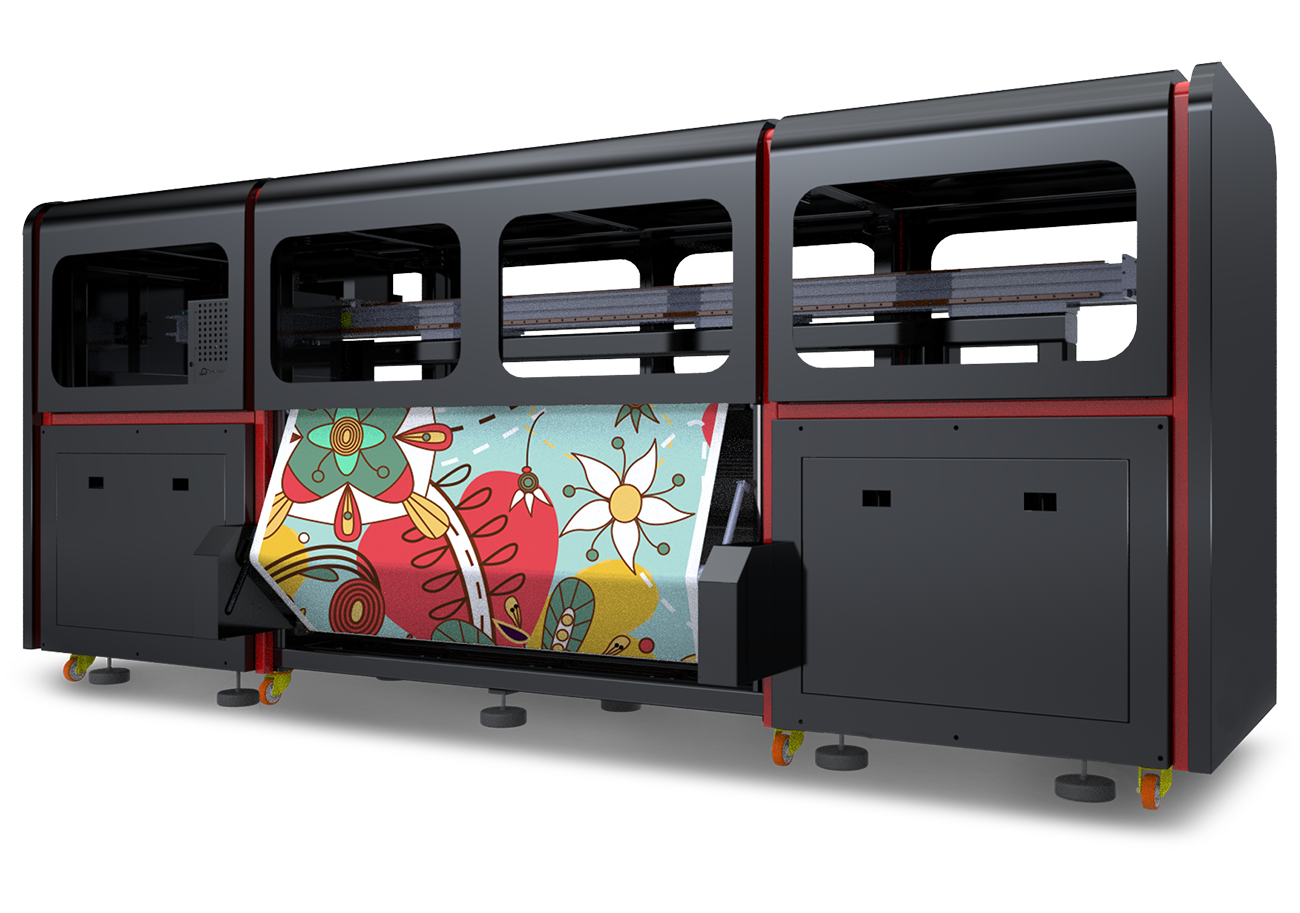

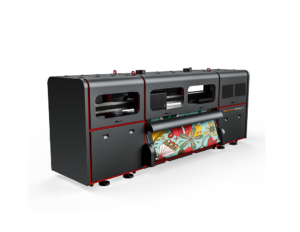

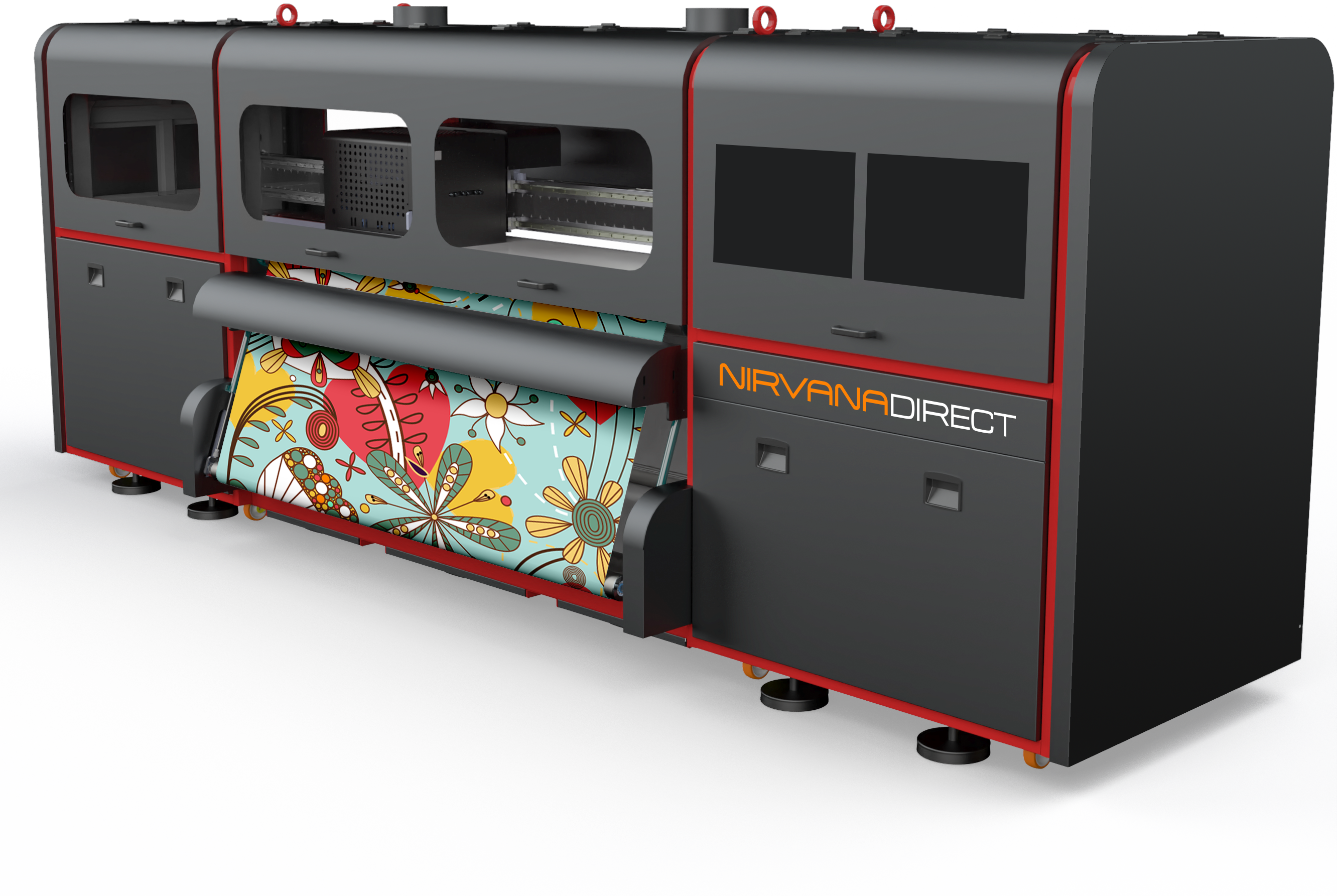

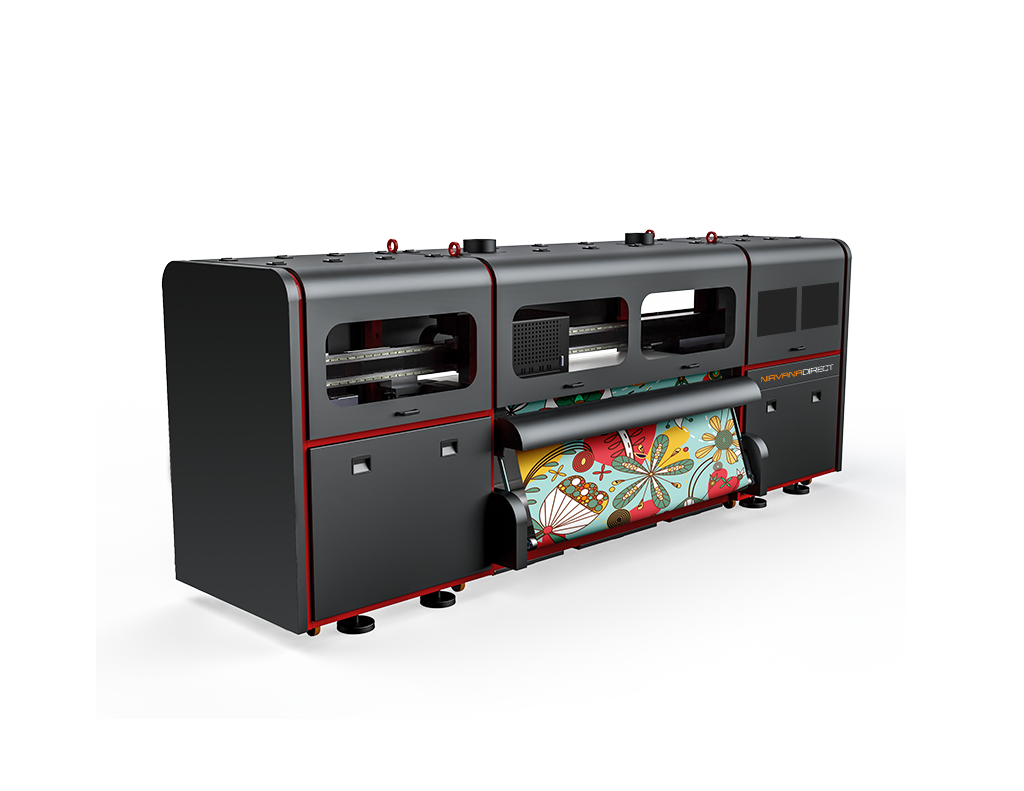

FLAGSHIP TEXTILE PRINTER CONFIGURED, WITH A DEFAULT PATENTED JUMBO-ROLL FEEDING SYSTEM, FOR QUALITY DIRECT TO FABRIC PRINTING AT HIGH SPEEDS

6,027 sqft/hr Max Speed
Up to 1,100lbs Media Feeding
80.7” or 126" Media Width

Why choose

  • Print directly on fabric with the additional of a mini-fixation unit.
  • Flexible color options with 16 print head slots in two rows, this printer can meet 5/6/8 color options with speed
  • This 5,500lbs strong and high quality build allows for hands off uninterrupted operations 24/7– the installed safety trigger and automatic cleaning system make sure the heads are not compromised regardless of how long you print
  • From our machinery to our after sales services we always provide the highest quality product at competitive industry prices
  • All new printers come with a one-year full warranty (T&C’s apply) with full support from our in-house leading color specialists and technical service engineers
DOWNLOAD CATALOGUE

    TECHNICAL SPECIFICATIONS

    Default Printhead Kyocera KJ4B - 600DPI
    Printhead Options 4 / 6 / 8 / 12 / 16 (max 2 rows)
    Ink Compatibility Sublimation, Pigment, Reactive
    Media Type Non-elastic textile, plastic film
    Media Feeding System Industrial jumbo roll feeder Vacuum system
    Max Media Weight 1,100lbs / 27.5” diameter
    500kg / 70cm diameter
    Power Requirements Single phase 220VAC 25A (for machine)
    Three phase 380VAC 32A (for dryer)
    Variable Drop 5 pl - 73 pl
    Color Options 4 color - 6 color - 8 color
    Ink Tank System Open System - 5kg capacity
    Media Drying System Industrial Fixation Unit
    RIP Software Neo-Stampa Optimum Digital
    Special Edition Caldera Textile Pro Enterprise
    Graphical User Interface (GUI) ODP Print 2
    Compressed Air 0,6 Mpa @ 2L/min
    Max Print Width Standard: 80.7” (205cm) L Option: 126” (320cm)
    Printer Dimensions 217” x 106” x 59” 550cm x 270cm x 150cm
    Net Printer Weight 5,732lbs 2,600kg
    Net Machinery Weight 7,716lbs 3,500kg

    Machine Features

    • Smart automatic head cleaning system
    • Separate industrial fixation unit included
    • Integrated vacuum generator with compressed air
    • IGUS energy chains for smooth motion control
    • Aluminium frame and double carriage rail
    • Unwinder/winder dancing tension system (no pinch rollers)
    • Patented industrial jumbo roll feeder with airshaft rolls
    • Safety trigger system for printhead protection
    • Closed design system for safe operation and reduced noise

    Printing Features

    • Potential for uninterrupted 24/7 printing operations
    • Low vibrations from strong frame for accurate dotting
    • Up to 1,100lbs (500kg) and 18” (70cm/ 27.5) diameter media rolls
    • Reliable drying at 6,027sqf/h (560sqm/h)
    • Spare-parts and inks inventory at USA warehouse
    • In-house color specialist for customized color profiling

    Included Machinery :

    Jumbo roll feeder

    Optional Machinery :

    Fixation unit

    Linear motor
