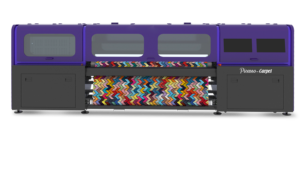

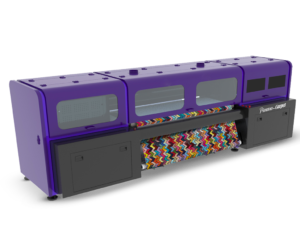

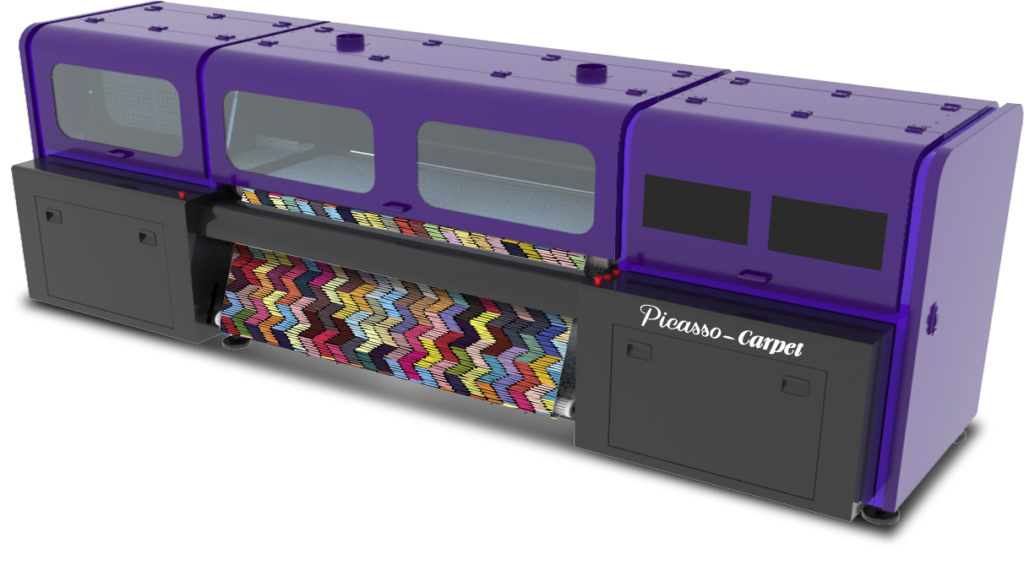

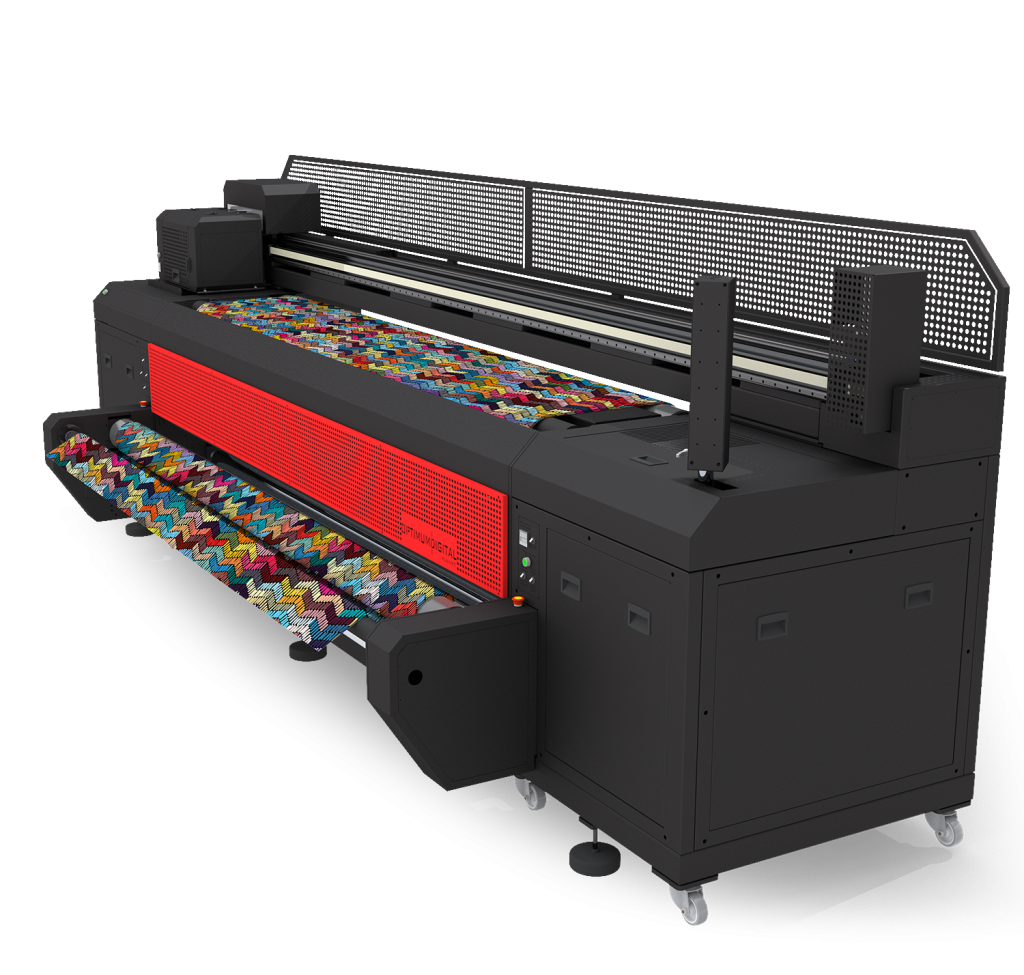

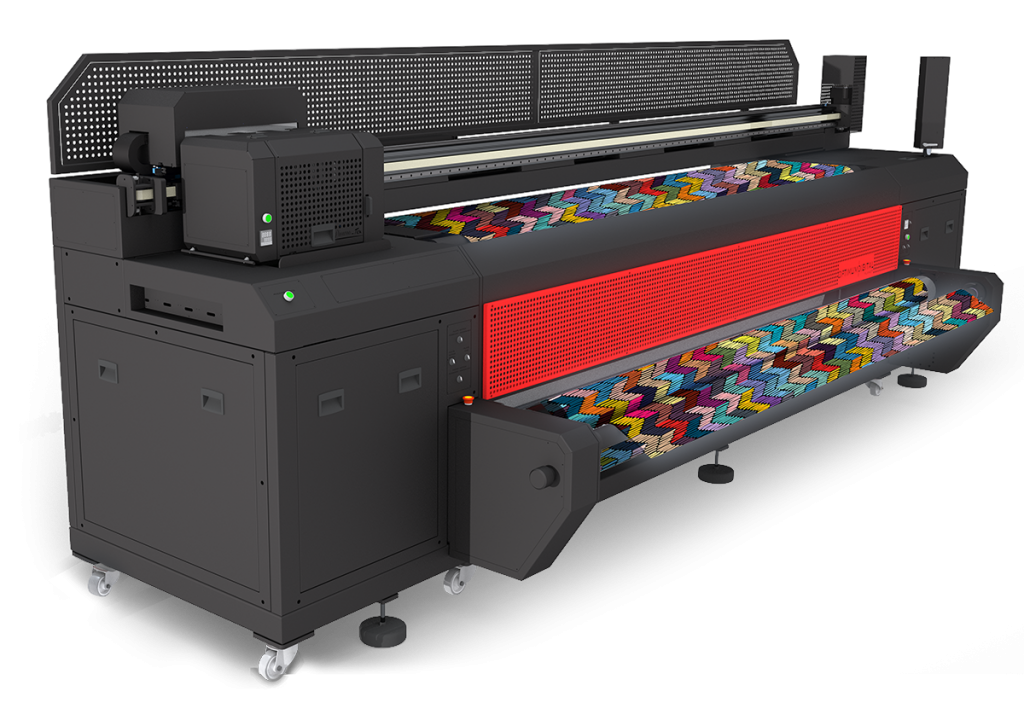

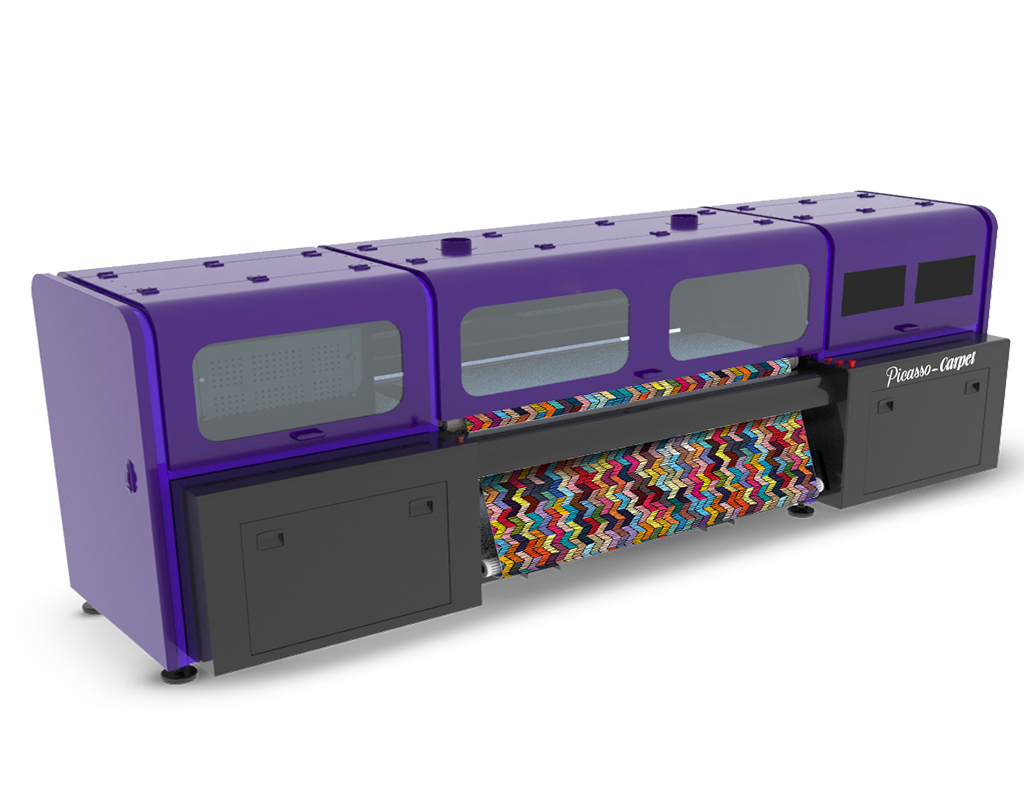

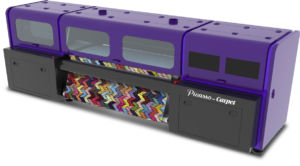

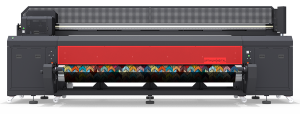

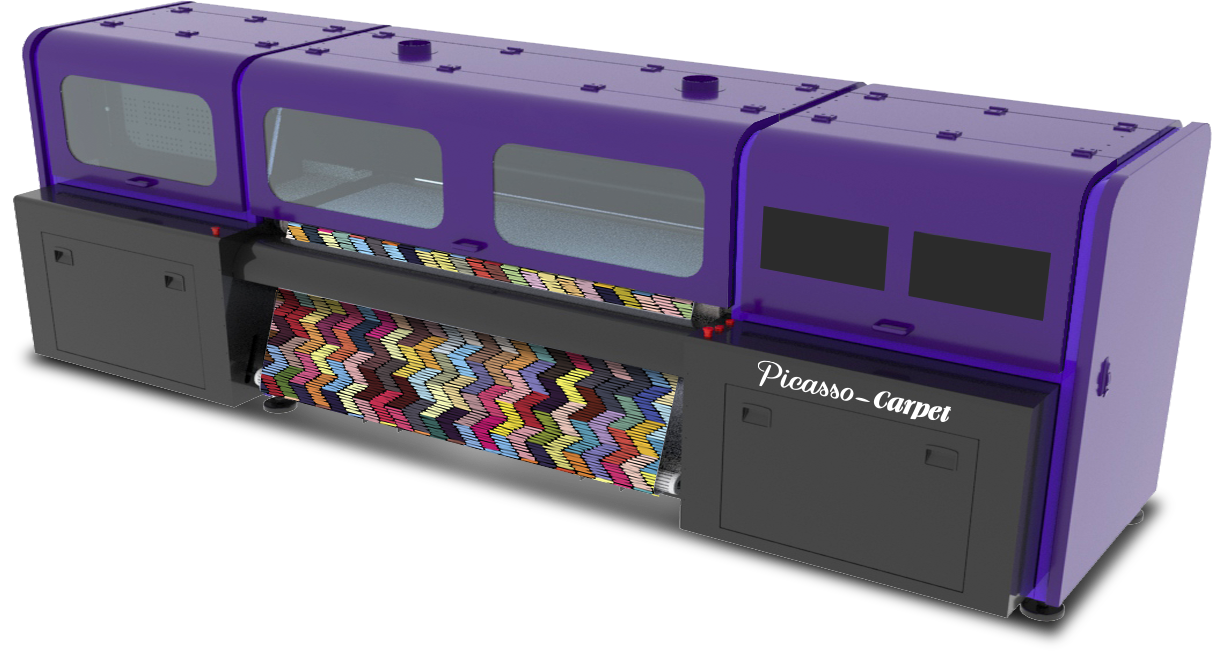

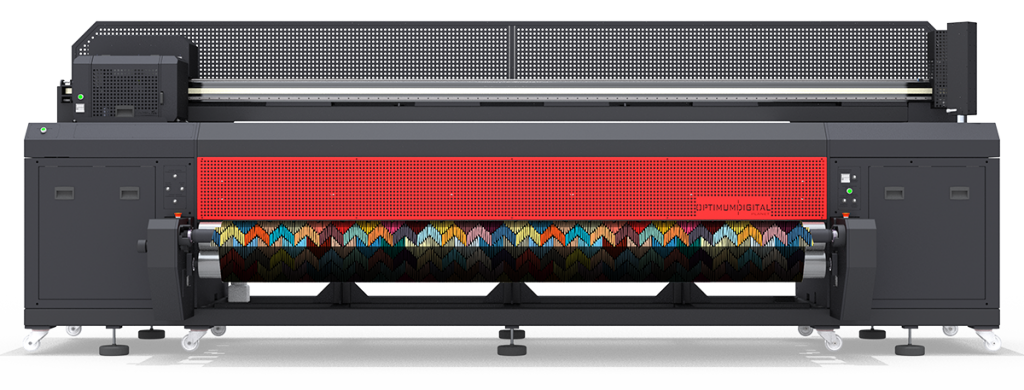

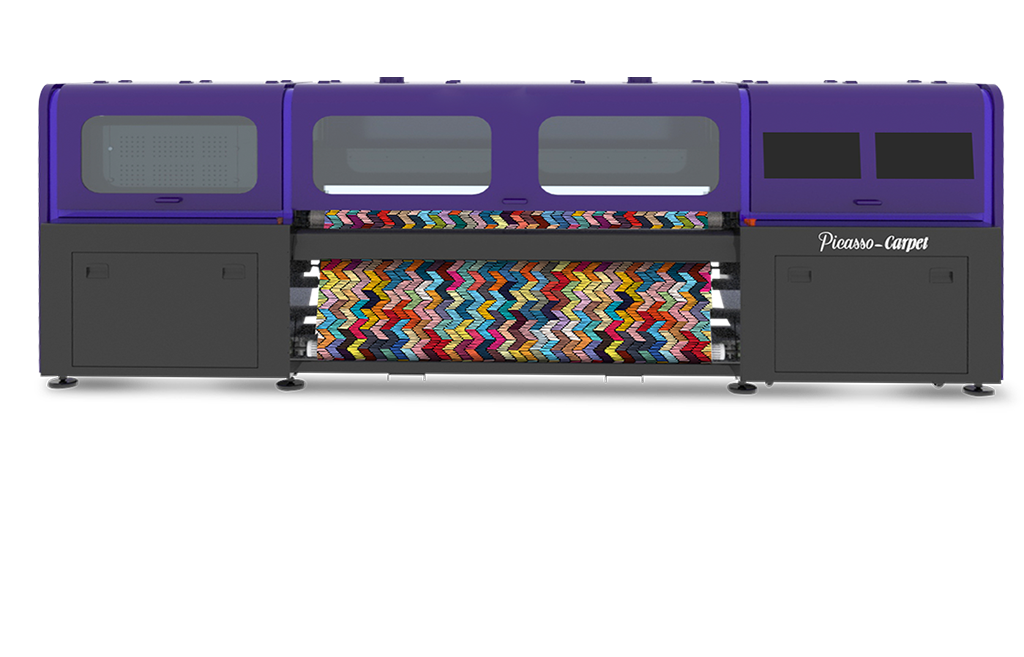

A REVOLUTIONARY CARPET PRINTING LINE FOR COMPLETE DIGITAL CUSTOMIZATION AT AN INDUSTRIAL SPEED ON POLYESTER AND NYLON CARPETS

1615 sqft/hr Production Speed
Over 16,000 Color Options
10' and 16' Media Width

Why choose

  • The first full industrial carpet printing set up at an accessible price point.
  • Upload unlimited designs with over 16,000 color possibilities to print on polyester or nylon carpets with full penetration up to 5mm pile height
  • Choose between up to 1,100lbs (500kg) rolls or carpet carts with up to 10′ or 16′ width and unlimited length to print on
  • The full line up ensures the carpet undergoes an intense post-printing process to chemically combine the ink to the substrate, resulting in extremely durable end product. No discoloration at over 1,000,000 footsteps and over 700 hours in the sun according to lab tests.
  • This 6,283lbs (2,850kg) strong and high-quality build allows for hands off uninterpreted operations 24/7 – the installed safety trigger and automatic cleaning system ensure heads are not compromised during operation.
  • All new printers come with a one-year full warranty (T&C’s apply) with full support from our in-house leading color specialists and technical service engineers

DOWNLOAD CATALOGUE

    Print Speed

    • Production Mode(3 Pass)
    • High Quality Mode(4 Pass)
    • High Color Mode(6 Pass)

    2 Row CMYK

    • 0 sqft/hr
    • 861 sqft/hr
    • 1184 sqft/hr
    • 1615 sqft/hr
    • Production Mode(3 Pass)
    • High Quality Mode(4 Pass)
    • High Color Mode(6 Pass)

    TECHNICAL SPECIFICATIONS

    Default Printhead Industrial 360 DPI
    Graphical User Interface (GUI) ODP Print 2
    Max Media Weight (Rolled) 1,100 lbs (500kg)
    Media Type Carpet or Rug
    Print Width Standard: 126" (320cm) L Option: 196" (500cm)
    Media Feeding System Rolled or Basket
    Fixation Unit Industrial Tunnel Fixation
    Ink Tank System Open System — 5kg per Color
    Media Take Up System Rolled or Basket
    Power Requirements Single Phase 220VAC 25A Three Phase 380VAC 63A
    Printhead Options 2 x CMYK
    RIP Software Neo-Stampa Optimum Digital Special Edition
    Production Speed 143,5 sq yards/hr 120 sqm/hr
    Min. Operating Space L: 46ft x W: 20ft L: 14m x W: 6m
    Net Printer Weight 6,283 lbs 2,850kg

    Machine Features

    • Smart automatic head cleaning system
    • U-type heat generation fixation unit included
    • Robust frame and double carriage rail
    • IGUS energy chains for smooth motion control
    • Giant industrial roller tension system (no-pinch rollers)
    • Flexible feeding unit for roll or basket media source
    • Flexibly take up for rolling or folding printed carpet
    • Safety trigger system for printhead protection

    Printing Features

    • Unlimited customised pattern and design possibilities
    • One-off printed designs at no additional costs
    • Potential for uninterrupted 24/7 printing operations
    • Low vibration from strong frame for accurate dotting
    • No-washing or pre-treatment required
    • Full spare-parts and inks inventory at USA office
    • In-house color specialist for customized color profiling

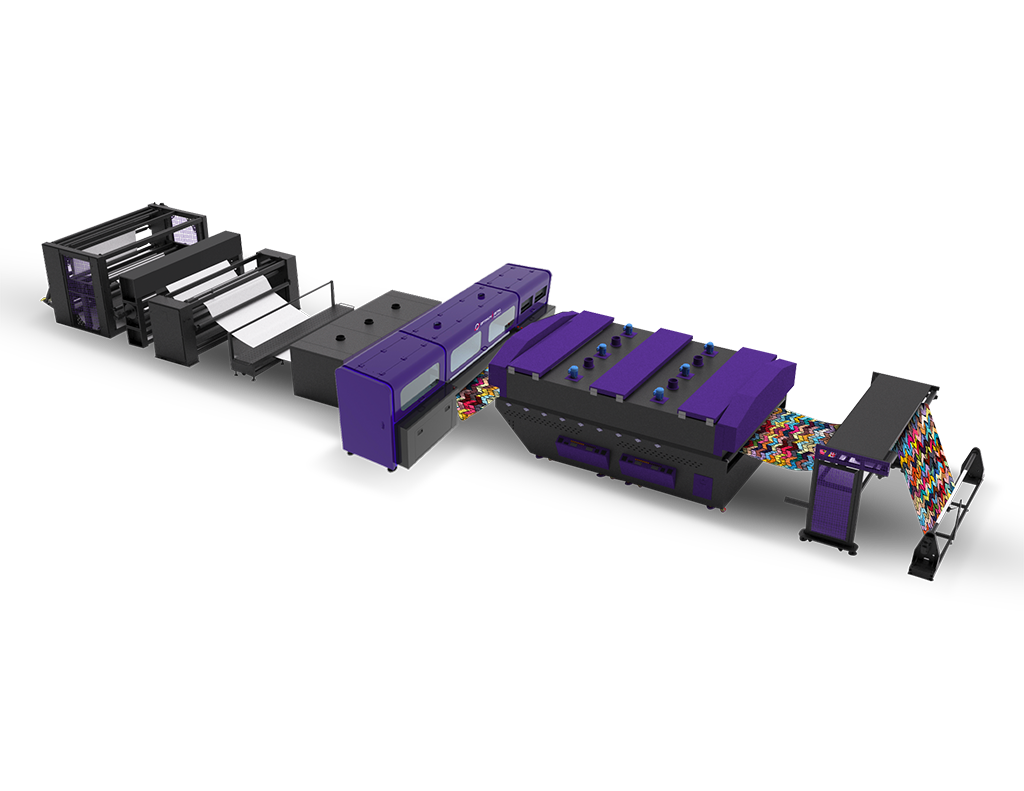

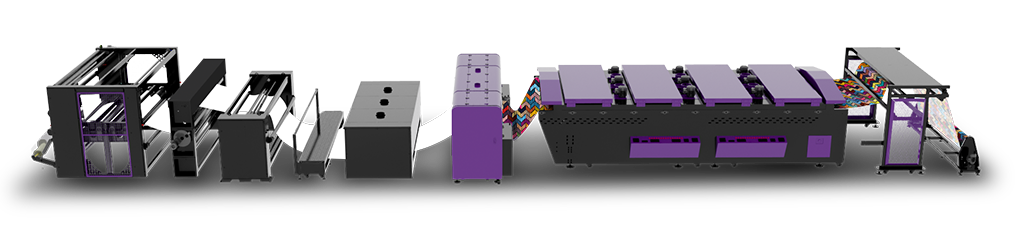

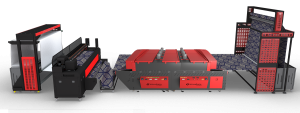

    Included Machinery :

    Feeding Unit
    Fixation Unit
    Take-Up Unit

    Optional Machinery :

    Washer
    Steamer
